Product Description

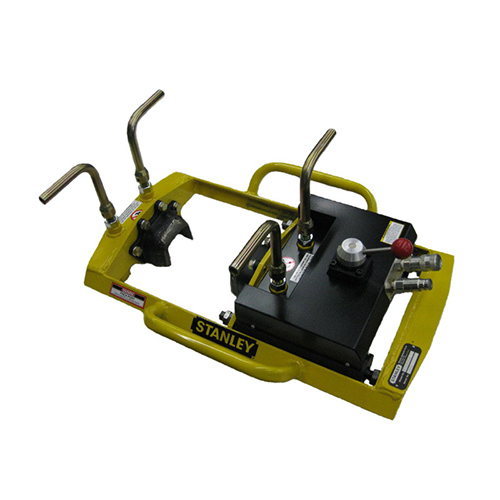

STANLEY'S powerful yet light-weight Weld Shear is the ideal tool for shearing thermite welds with a shearing force of over 20,000 lbs (89,000 Nm).The WS10’s efficient design allows welds to be sheared prior to dismantling the weld mold, decreasing the time to set up and increasing productivity. The in-line pump handle eliminates rocking of the shear on the rail during shearing operation.
Features
• In-line handle.
• Controls placed away from shear for operator safety.
• 4 self-locking hold downs.
• Replaceable rollers.
• Includes blade set A, 27948
| Part No. | Weight | Width | Height | Description | Hydraulic Pressure | Flow Range | Shear force |
| WS10321A | 90 LBS / 41 KG | 19.5 IN /49.5 CM | 12 IN / 30.4 CM | LIGHTWEIGHT WELD SHEAR | 1000-2000 PSI /70-140 BAR | 3-10 GPM / 12-38 LPM | 20000 LBS / 89000 NM |
| WS10321AB | 90 LBS / 41 KG | 19.5 IN /49.5 CM | 12 IN / 30.4 CM | LIGHTWEIGHT WELD SHEAR WITH AERO QUIP COUPLERS | 1000-2000 PSI /70-140 BAR | 3-10 GPM / 12-38 LPM | 20000 LBS / 89000 NM |
