Product Description

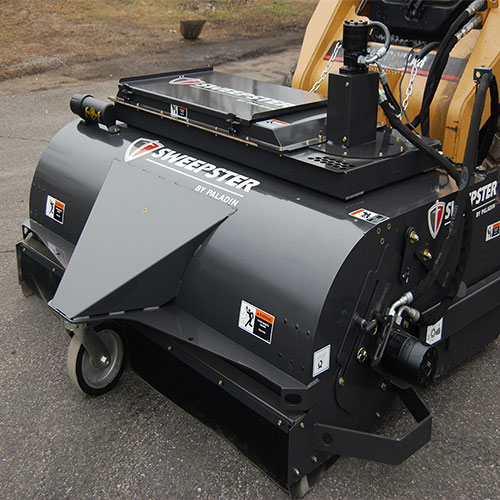

VS - SSL Collector Sweeper with Waterless Dust Abatement - Hydraulic Drive
• Patented waterless dust abatement
• Volumizer® Bar increases bucket capacity 22%
• High dump feature
• Heavy duty cleanup
• Brush follows ground contour with front castor
• Powered from SSL hydraulics
• 15-25 GPM flow required
• 26" brush diameter
• 5', 6', 7' brush widths available
• Quick change core
• Tool-less brush adjustment
| Specifications | VSS5 | VSS6 | VSS7 |
| Width (overall) | 73" | 85" | 97" |
| Length (overall) | 69" | 69" | 69" |
| Sweeping Width | 60" | 72" | 84" |
| Sweeping Width w/ Optional Gutter Brush | 72" | 84" | 96" |
| Weight (lbs) | 1446 | 1562 | 1678 |
| Flow Range (GPM) | 15-25 | 15-25 | 15-25 |
| PSI Range | 2,000 - 3,500 | 2,000 - 3,500 | 2,000 - 3,500 |
| Hopper Capacity | 15 ft3 | 18 ft3 | 21 ft3 |
| Waterless Dust Abatement Attachment Specifications | |
| Weight (approximate) | 235 lbs |
| Height | 6.5" |
| Width | 59" |
| Length | 26.5" |
| Maximum back pressure | 350 psi |
