Product Description

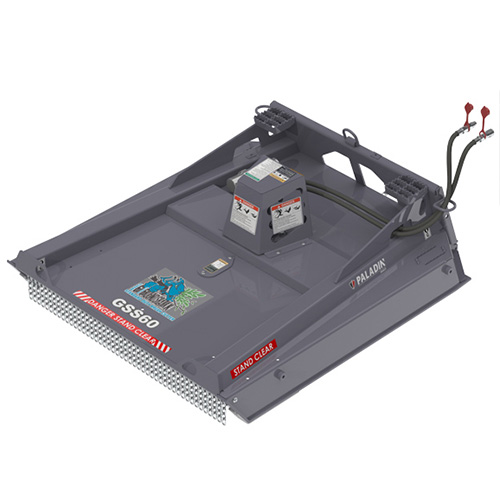

The Ground Shark™ Standard Duty Brush Cutter is designed to clear light to medium density brush and hard- woods up to 4” in diameter. The Ground Shark™ direct drive system runs efficient, smooth and quiet while directing the toughest material.
Ground Shark Features
● Dual pressure reliefs on the hydraulic motor allow for bi-directional operation protect against pressure spikes that could damage the drive system
● If the situation requires, the cutting blades will stop rotating within seconds once the motor is disengaged to maximize operator & worksite safety, minimizing the potential of damage to the machine & overall drive system
● 25” thick steel deck design
● Replaceable skid shoes
● An optional pressure gauge is easily visible to the operator and helps prevent excessive stalling and overheating
● Bi-directional forged steel blades allow operator to cut in both directions extending operational life and reducing maintenance costs
● Optional dual wheel kits are available that mount to the underside of the front deck to keep the blades off the ground and prevent scalping
Standard Duty Ground Shark Brush Cutter | |||||||
Model | GSS60 | GSS72 (A) | GSS72 (B) | GSS72 (C) | GSS78 (A) | GSS78 (B) | GSS78 (C) |
Recommended Hydraulic Flow (GPM) | 15-25 | 15-25 | 26-32 | 33-40 | 15-25 | 26-32 | 33-40 |
Height | 26" | 26" | 26" | 27.5" | 26" | 26" | 27.5" |
Length | 76" | 88" | 88" | 88" | 94" | 94" | 94" |
Width | 64" | 76" | 76" | 76" | 82" | 82" | 82" |
Minimum Cutting Height | 2.5" | 2.5" | 2.5" | 2.5" | 2.5" | 2.5" | 2.5"" |
Deck Height | 9" | 9" | 9" | 9" | 9" | 9" | 9" |
Cutting Width | 60" | 72" | 72" | 72" | 78" | 78" | 78" |
Cutting Capacity | 4" | 4" | 4" | 4" | 4" | 4" | 4" |
Deck Thickness (Steel) | 0.25" | 0.25" | 0.25" | 0.25" | 0.25" | 0.25" | 0.25" |
Required Lift Capacity | 1,200 lbs | 1,400 lbs | 1,400 lbs | 1,500 lbs | 1,500 lbs | 1,500 lbs | 1,600 lbs |
Weight (Approximate) | 1,120 lbs | 1,280 lbs | 1,280 lbs | 1,320 lbs | 1,365 lbs | 1,365 lbs | 1,405 lbs |
