Product Description

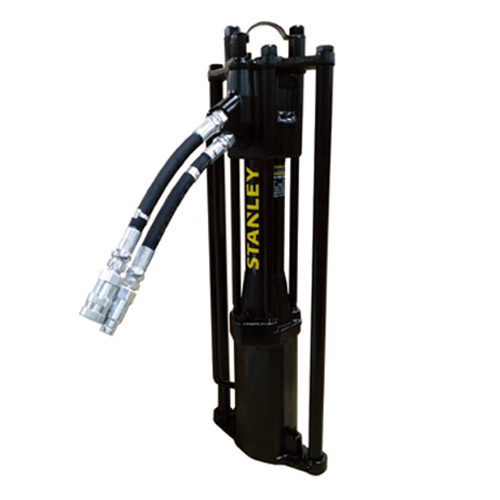

The PD45 features dual guiding handles, a lifting eye and remote or integral On/Off Valve. Models with integral triggers run the full length of the handles and are spring loaded to the OFF position. A model is available to drive DOT required breakaway posts to within 4 inches / 100 mm above ground level. All PD45 models are furnished with flush faced quick disconnect couplers.
Specifications
Application: Drives a variety of shapes and sizes of sign posts
Capacity: U-Channel Posts, Square Posts,
Round Post, Delineators
Hyd. Flow: 7-9 gpm / 26-34 lpm
Weight: 65 lbs / 29 kg
Length: 30 in. / 76 cm
Width: 10 in. / 25 cm
Connection: 3/8 in. flush face quick disconnect couplers
Model | Part No. | Weight | Length | Width | Flow Range | Working Pressure | Full Relief Setting | Capacity | Misc. |
PD45 | PD45131 | 65 LBS / 29 KG | 30 IN. / 76 CM | 10 IN. / 25 CM | 7-9 GPM /26-34 LPM | 1000-2000 PSI / 70-140 BAR | 2250 PSI / 155 BAR | U-CHANNEL, DELINEATOR, SQUARE & ROUND POST | IN-LINE VALVE |
PD45132 | 67 LBS / 30 KG | 30 IN. / 76 CM | 10 IN. / 25 CM | 7-9 GPM /26-34 LPM | 1000-2000 PSI / 70-140 BAR | 2250 PSI / 155 BAR | U-CHANNEL, DELINEATOR, SQUARE & ROUND POST | VALVE IN HANDLE | |
PD45132G | 67 LBS / 30 KG | 30 IN. / 76 CM | 10 IN. / 25 CM | 7-9 GPM /26-34 LPM | 1000-2000 PSI / 70-140 BAR | 2250 PSI / 155 BAR | U-CHANNEL, DELINEATOR, SQUARE & ROUND POST | VALVE IN HANDLE EXTENDED ANVIL | |
PD45151 | 65 LBS / 29 KG | 30 IN. / 76 CM | 10 IN. / 25 CM | 7-9 GPM /26-34 LPM | 1000-2000 PSI / 70-140 BAR | 2250 PSI / 155 BAR | U-CHANNEL, DELINEATOR, SQUARE & ROUND POST | NO VALVE, HOSES, OR COUPLERS |
