Product Description

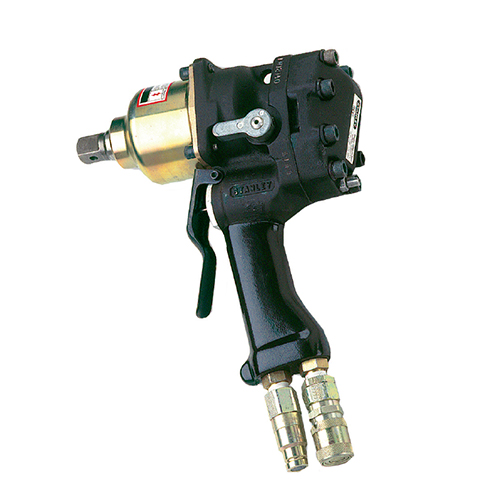

The STANLEY IW Series of tools are medium to extreme duty square drive impact wrenches designed for some of the toughest underwater bolting applications. Powered by a integral STANLEY Hyrevz motor, our impact wrenches have an impact intensity ranging from 250 ft lbs of torque to 3,500 ft lbs of torque. Designed to run from a wide range of hydraulic circuits, this wrench allows underwater bolting in the most extreme applications. Hi-visibility yellow paint is standard.
Specifications
• Adjustable impact intensity, from 250 to 1200 ft. lb. / 340 to 1632 Nm
• Swing Hammer Mechanism
• Feathering trigger
• Reversing valve for instant change over from forward to reverse
• 3/4 inch square drive
• With or without a trigger guard
| Model | Part No. | Weight | Length | Width | Flow Range | Working Pressure | Full Relief Setting | Torque | Capacity | Misc. |
| IW12 | IW12140 | 14 LBS / 6.4 KG | 9 IN. / 24 CM | 4 IN. / 10 CM | 4-12 GPM / 15-45 LPM | 1000-2000 PSI / 70-140 BAR | 2250 PSI /155 BAR | 250-1200 FT LBS | 3/4 IN. SQUARE DRIVE | |
| IW1214001 | 14 LBS / 6.4 KG | 9 IN. / 24 CM | 4 IN. / 10 CM | 4-12 GPM / 15-45 LPM | 1000-2000 PSI / 70-140 BAR | 2250 PSI /155 BAR | 250-1200 FT LBS | 3/4 IN. SQUARE DRIVE | CE | |
| IW1234001 | 14 LBS / 6.4 KG | 11¼ IN / 28.6 CM | 4 IN. / 10 CM | 4-12 GPM / 15-45 LPM | 1000-2000 PSI / 70-140 BAR | 2250 PSI /155 BAR | 250-1200 FT LBS | 3/4 IN. SQUARE DRIVE | UNDERWATER |
